Use the command movetexttoelevation to move each object at its insertion point to the elevation. In the panel indicate that it is a tin type area and select the layer where it is hosted in my case i will do so in c topo. The newly created surface appears in prospector immediately but it cannot be seen in the drawing until some data is added to it.
create surface civil 3d create surface civil 3d from polylines

Finding patching holes in a civil 3d surface model duration.

Create surface civil 3d. Create a surface in civil 3d from an existing autocad drawing part 1 of 2 duration. To create a tin surface. Cad and stuff 85716 views. In the select template dialog box browse to the tutorial folder.

Select all text objects and move them in x and y to meet their insertion point with the middle of the symbol. A tin surface comprises the triangles that form a triangulated irregular network. The create tin surface from point cloud wizard is displayed. Click home tab create ground data panel surfaces drop down create surface from point cloud find.

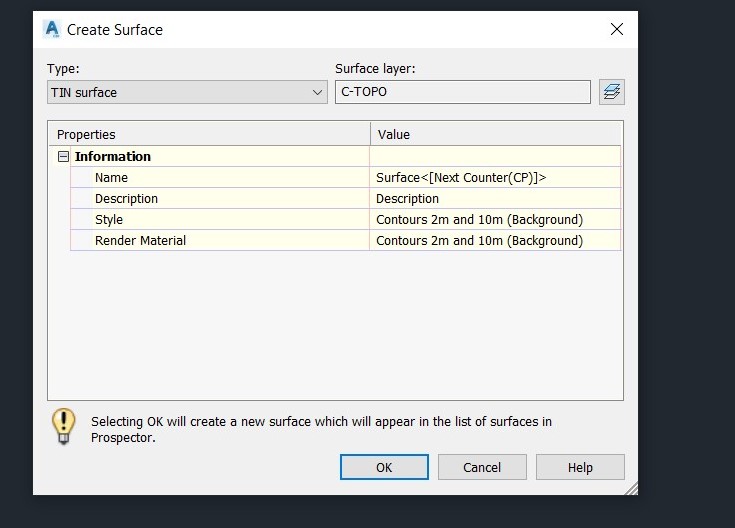

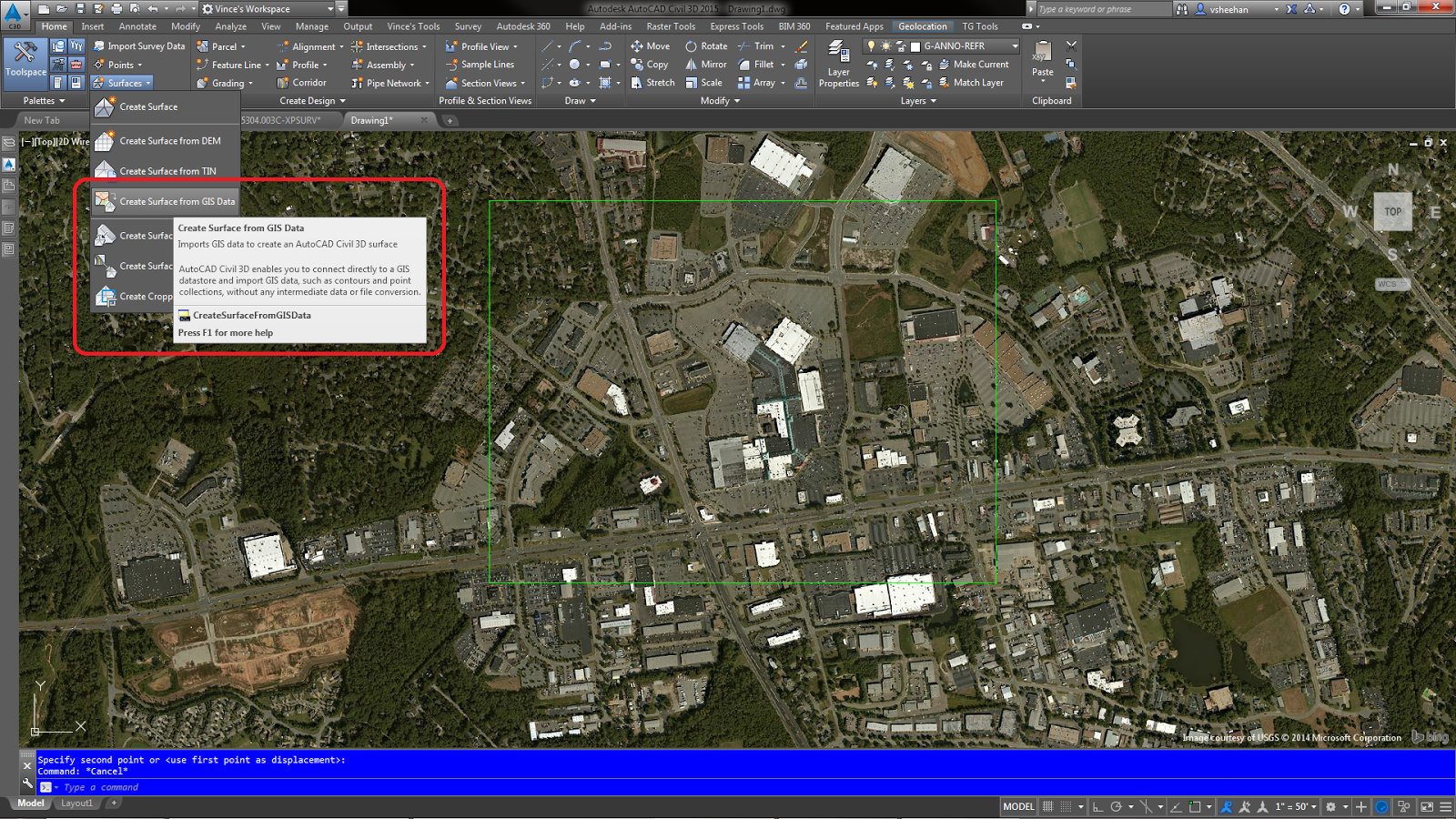

In the create surface dialog box for type select tin surface. Click home tab create ground data panel surfaces drop down create surface find. The fundamental components of a surface are points and lines. To do this on the pane toolbar select surfaces right click mouse by choosing create surface.

Create a surface in civil 3d from an existing autocad drawing part 1 of 2 duration. You can create a surface that comprises a combination of points breaklines boundaries and contours. Cad and stuff 85802 views. About creating a tin surface.

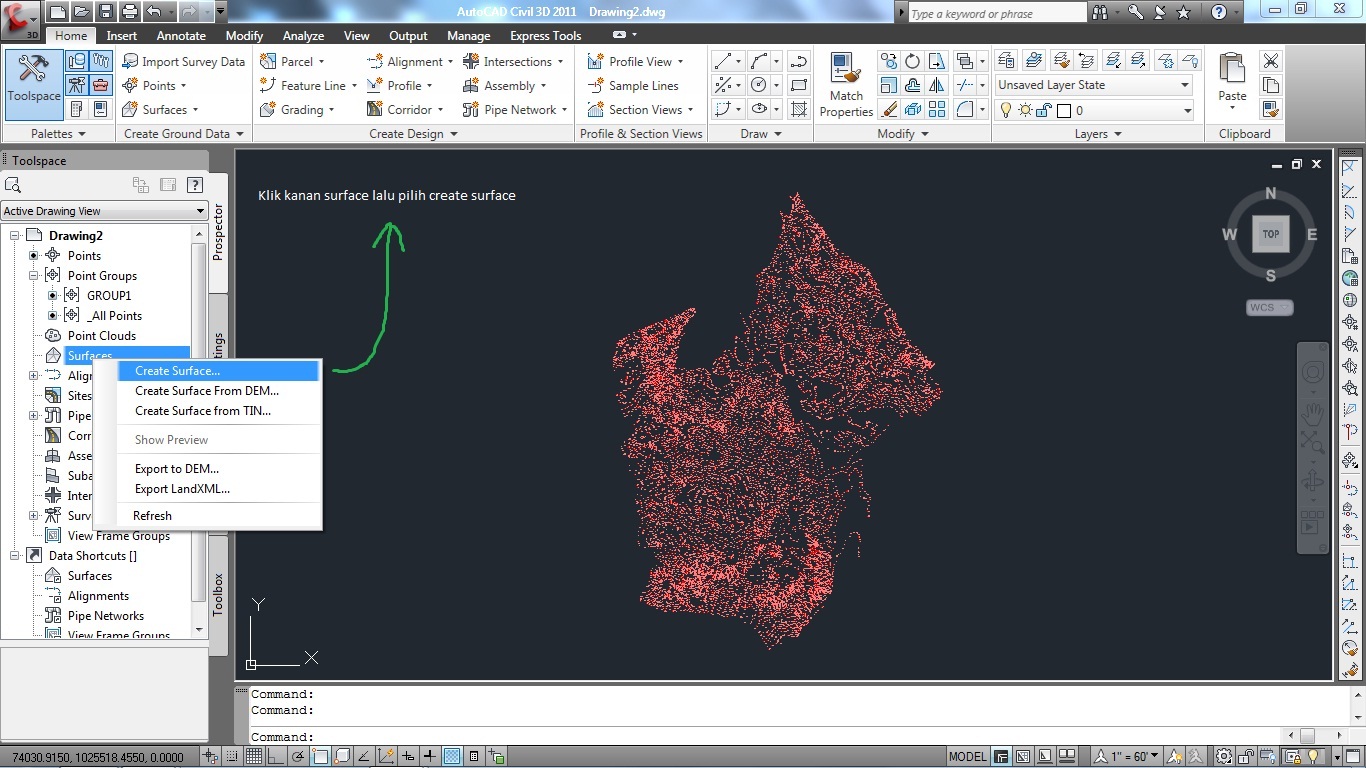

From home ribbon create ground data click on surfaces create surface. On the general page specify the surface creation details. Explode the block you get lines for the symbol and text as elevation annotation. You create a surface in prospector by simply right clicking the surfaces node of the tree and selecting create surface as shown in figure 42.

Creating surface from 3d faces in autodesk civil 3d 1. To create a. In create surface dialog name the surface select. Arnold schwarzenegger this speech broke the internet and most.

Optional run lineworkshrinkwrap command and select all 3d faces from which the surface needs to be created. As its name we assign geofumadas land and field test in the description. Select a point cloud or use one of the command line selection options to select an area of one or more point clouds.
